Pharmaceutical Site Layout

Our client was providing reverse osmosis (RO) equipment and design support to a biochemical company installing a greenfield manufacturing site.  We were tasked with:

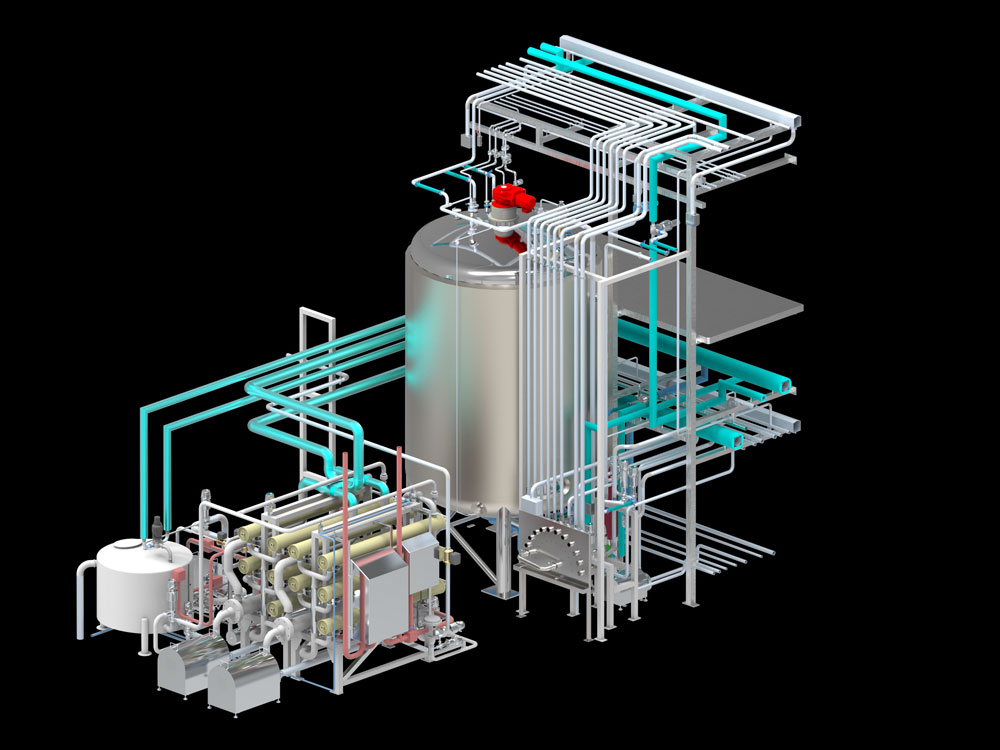

  • Creating a site layout for tanks and other equipment
  • Designing pipe runs, valve locations & keyplates
  • Supplying manufacturing drawings with weld maps for each component
