Machine Guarding

All machine safety guarding designed and supplied by Concentric Engineered Solutions complies with AS/NZS4024-2014 and Health and Safety at Work Act 2015.

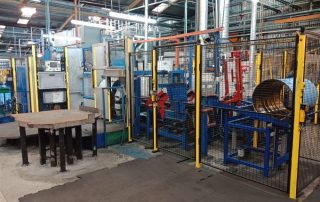

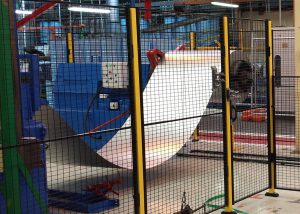

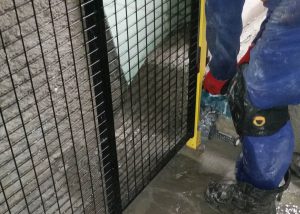

Modular guarding

Axelent X-Guard safety distance guarding features:

  • 50 x 30mm mesh aperture to provide a 200mm safety distance from a hazard
  • A range of hinged or sliding doors.
  • Yellow powder coated posts and black powder coated mesh and components.
  • Mesh panels available in 100mm increments from 250 to 1500mm wide.
  • Standard panel heights of 2000 and 2300mm.
  • Panels can only be removed with supplied key – operators are prevented from removing panels with common tools such as Allen keys or spanners.
  • Cost effective
  • Quick to assemble and install
Axelent X-Guard complies with:
  • NZS/AS 4024-2014
  • European standards EN ISO 13857 and EN 953
  • Machine directive 2006/42/EC

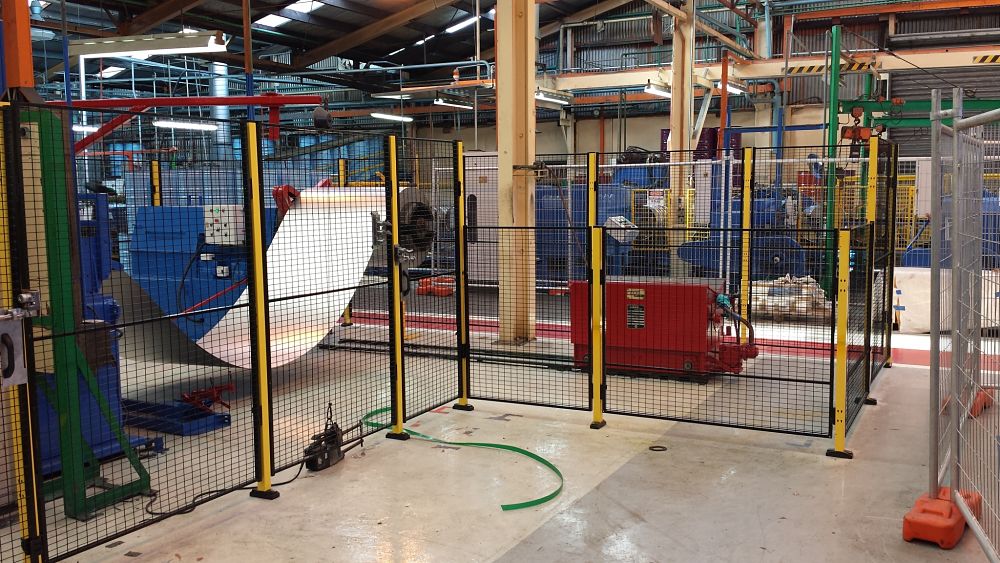

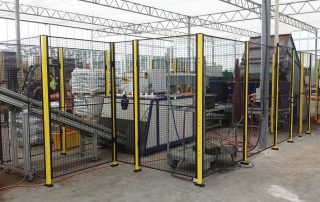

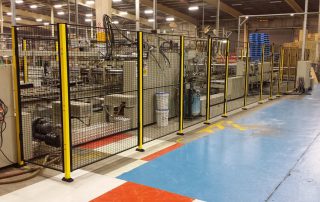

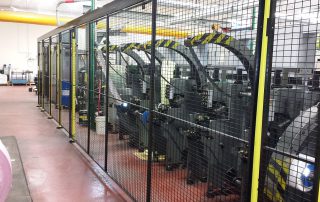

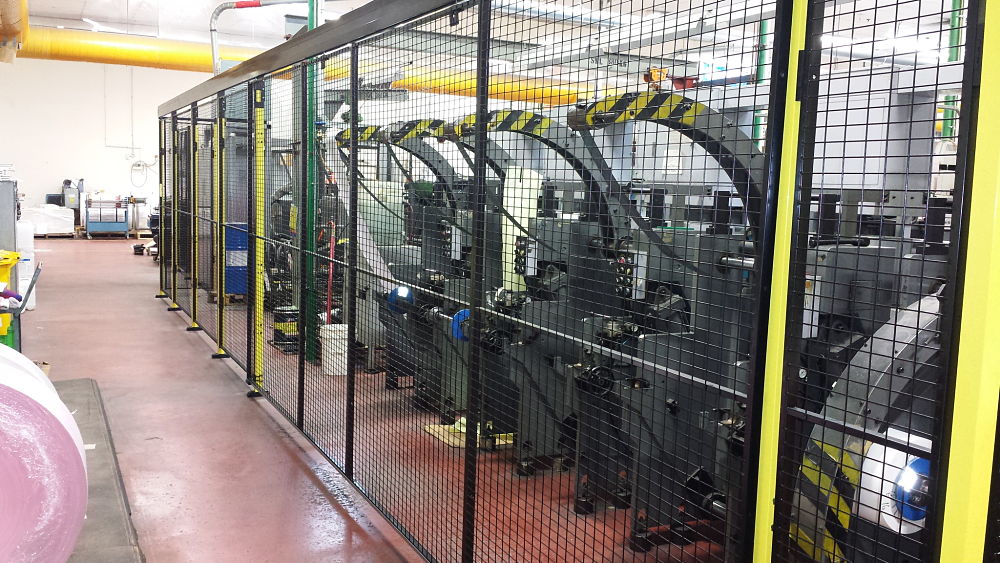

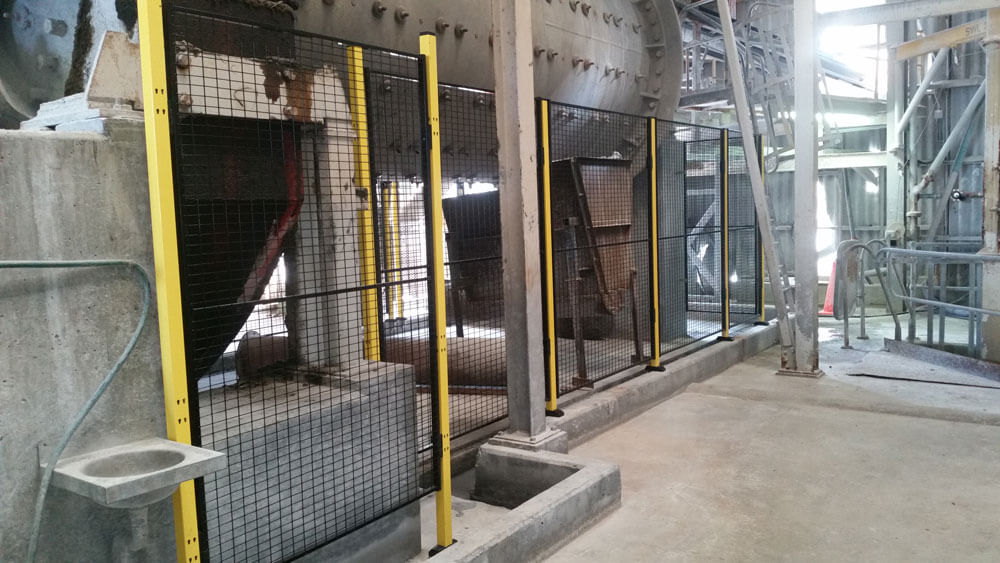

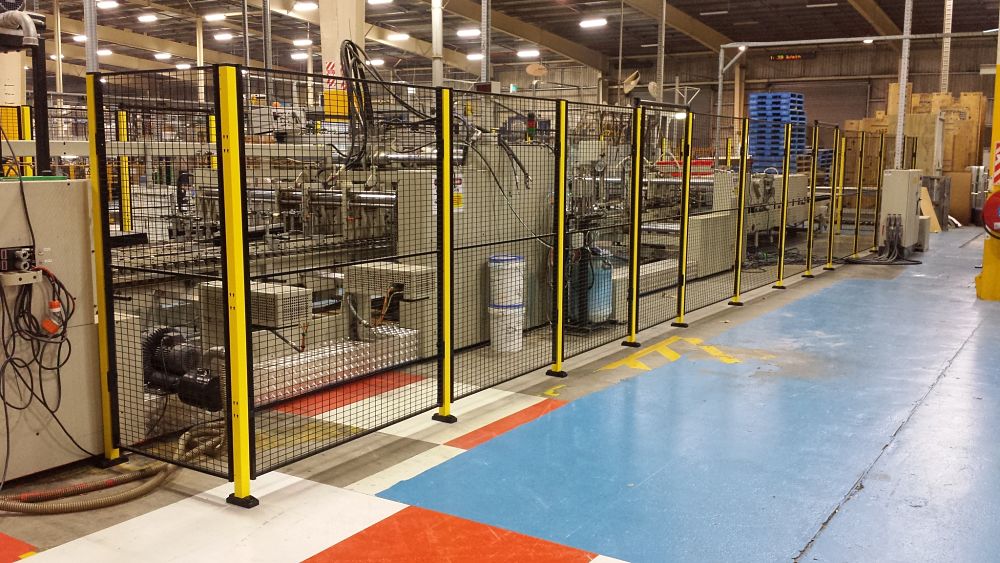

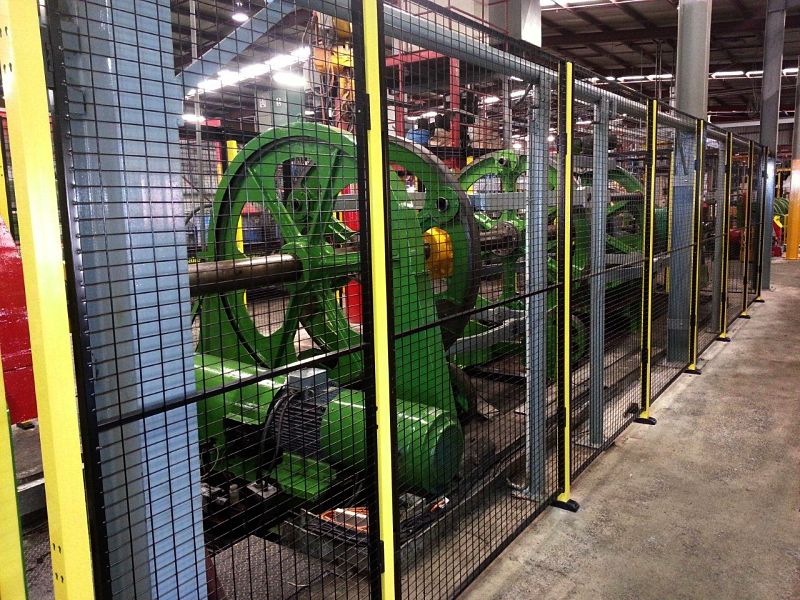

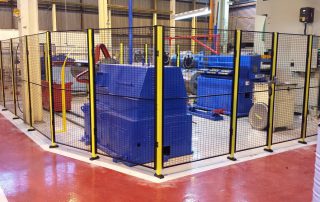

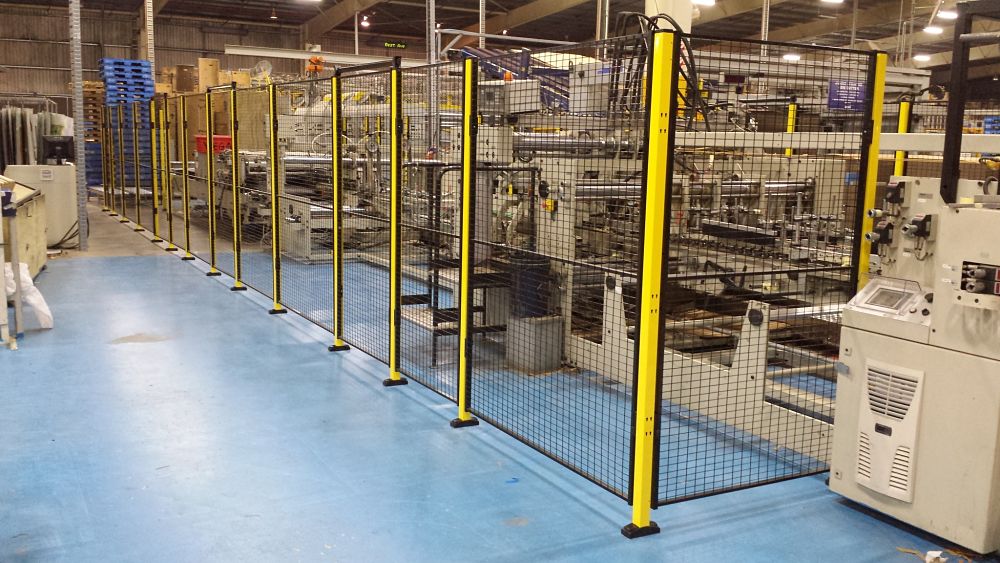

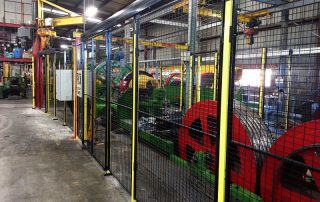

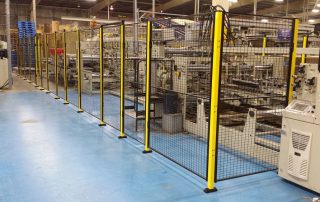

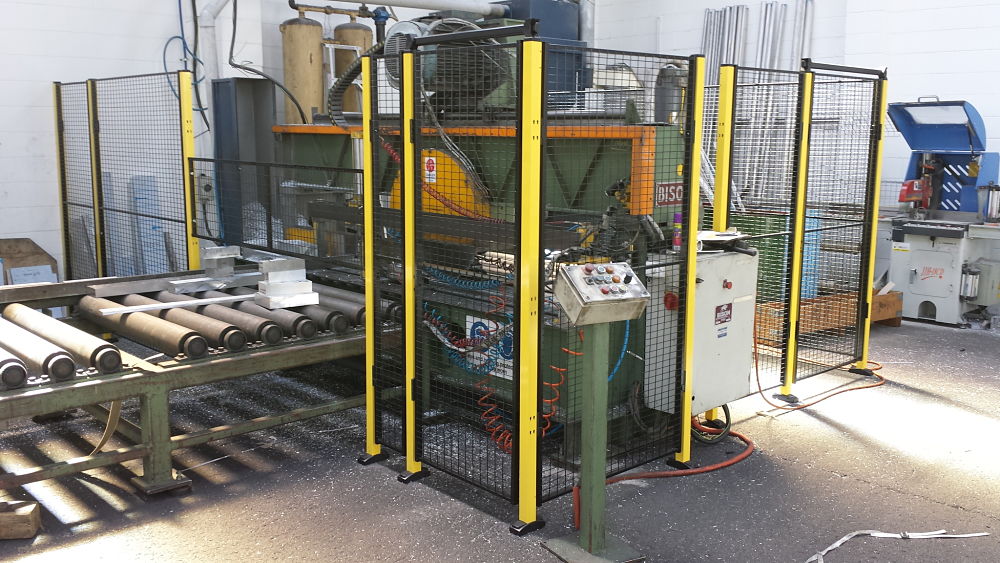

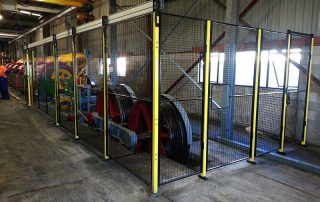

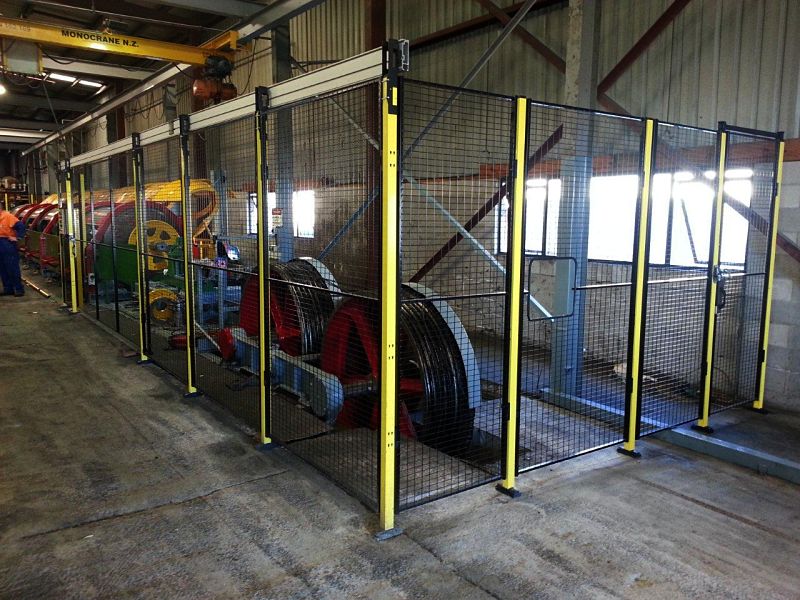

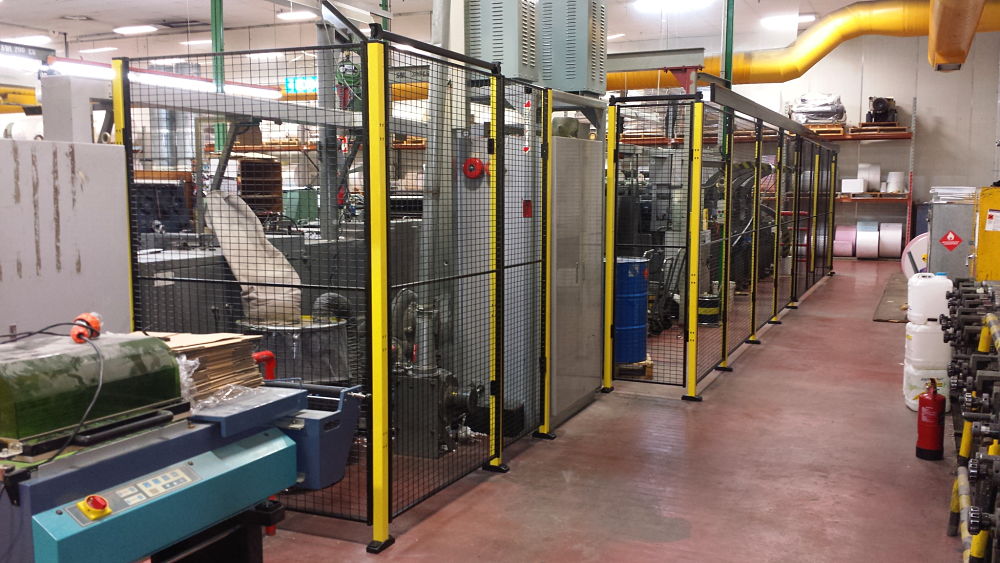

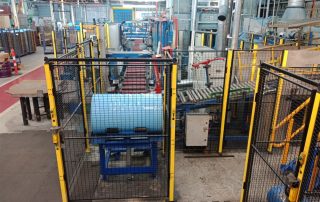

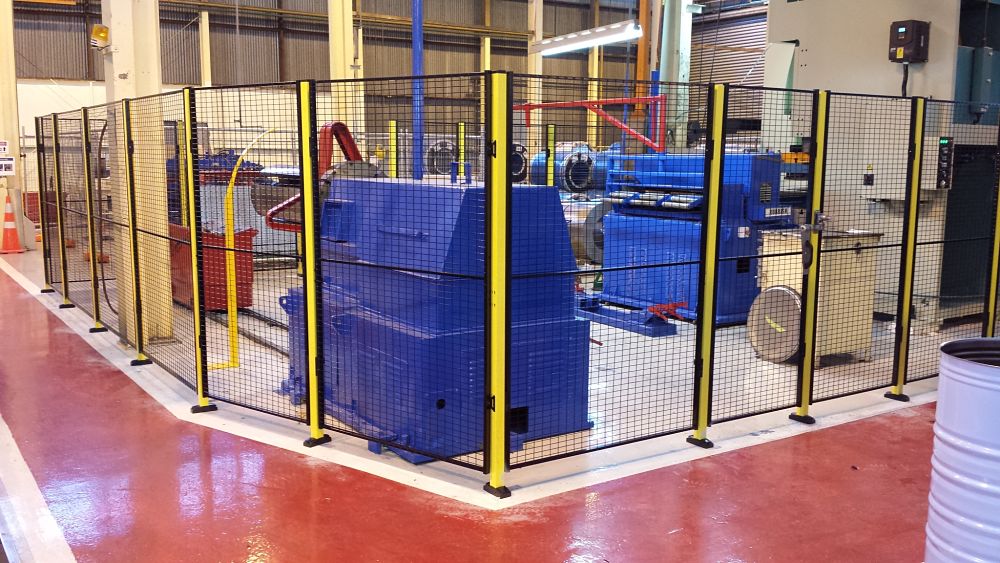

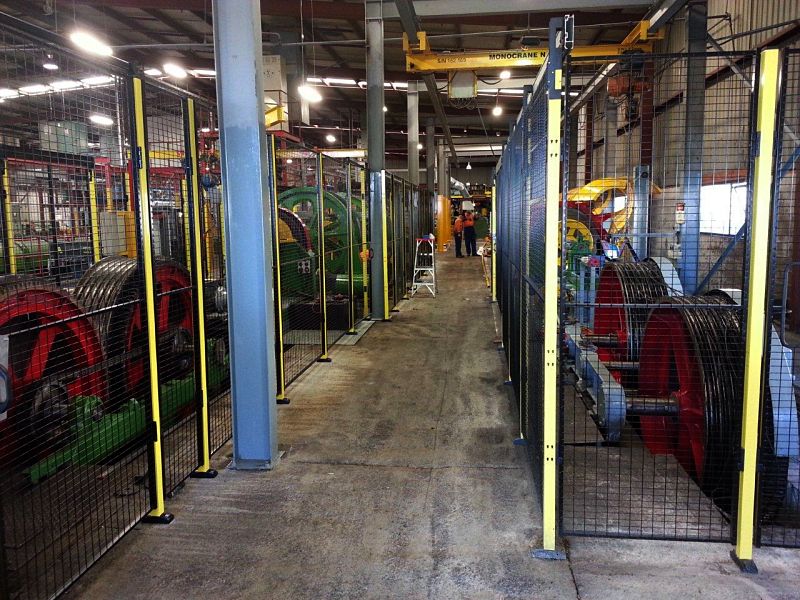

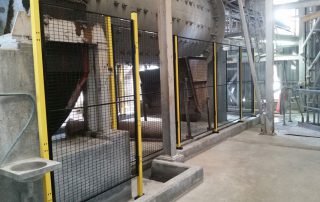

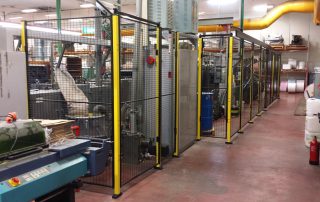

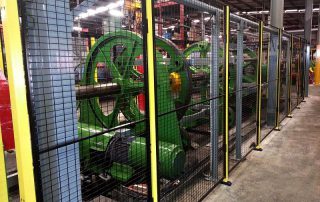

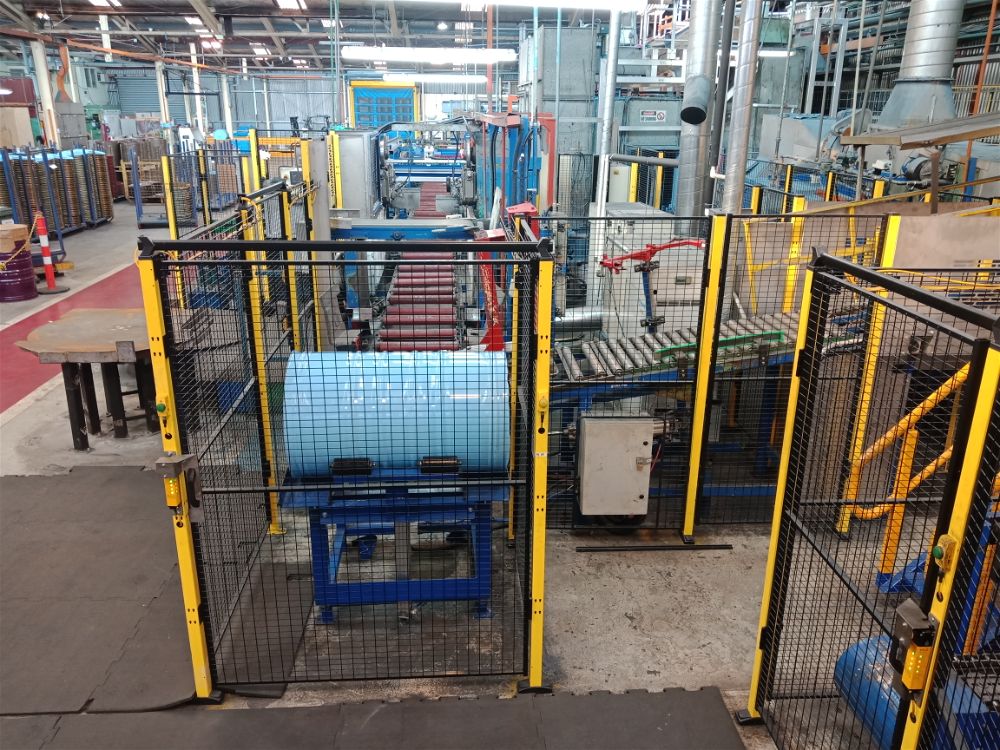

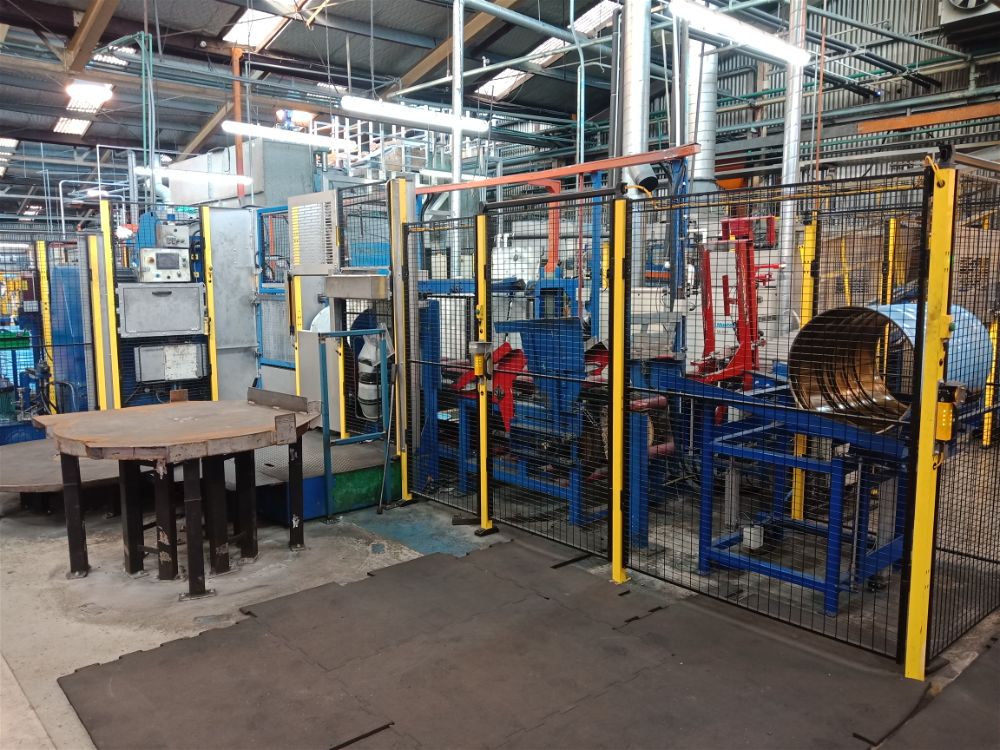

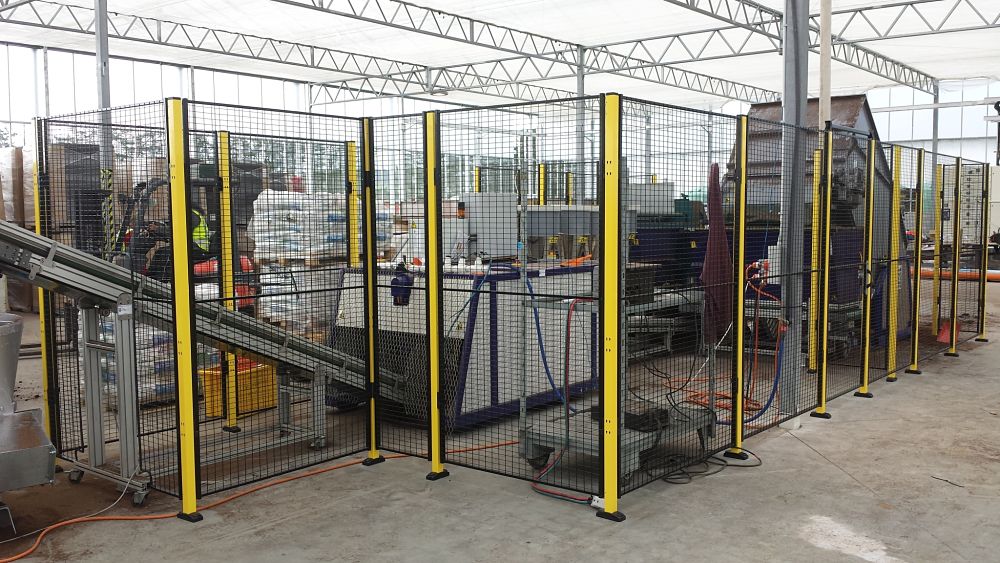

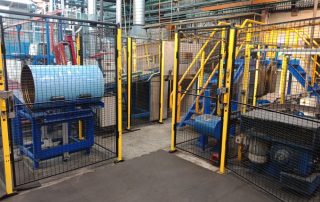

Axelent X-Guard Safety Guarding

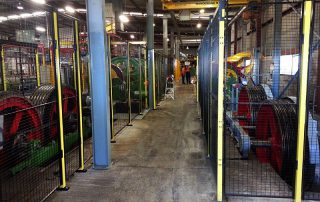

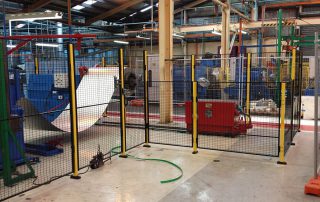

To view more images of modular guarding click any of the images below:

Download the Axelent X-Guard Brochure

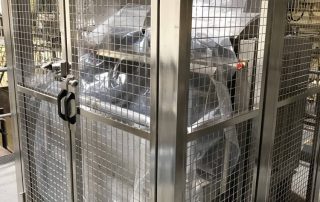

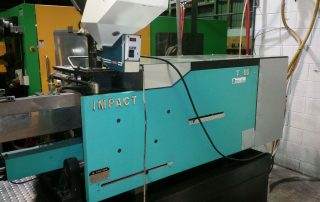

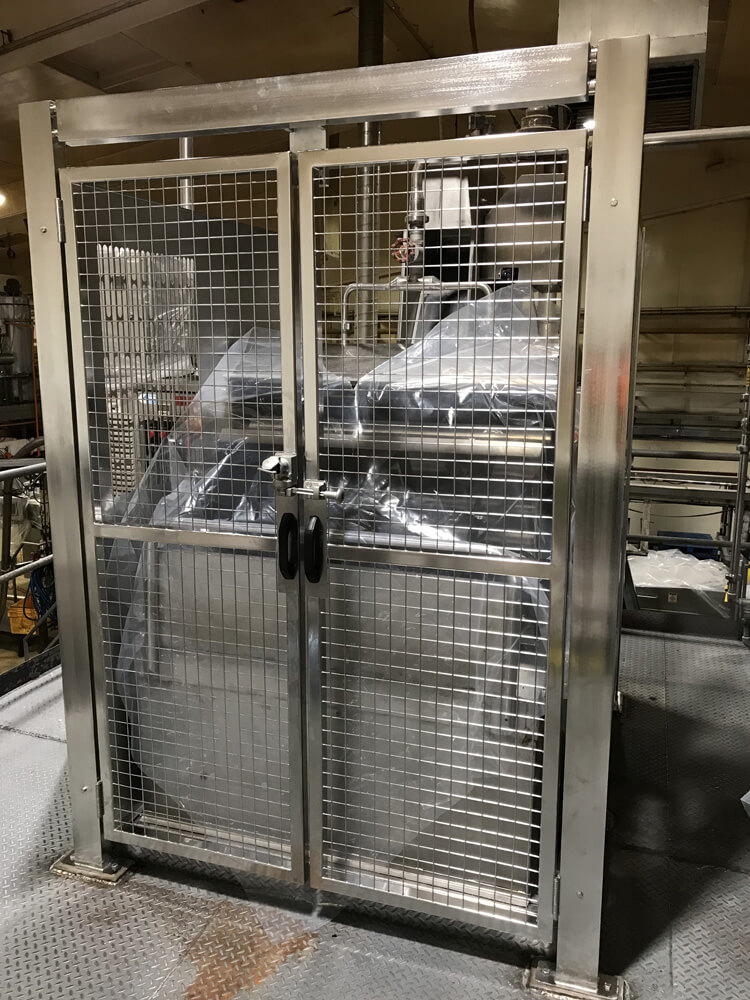

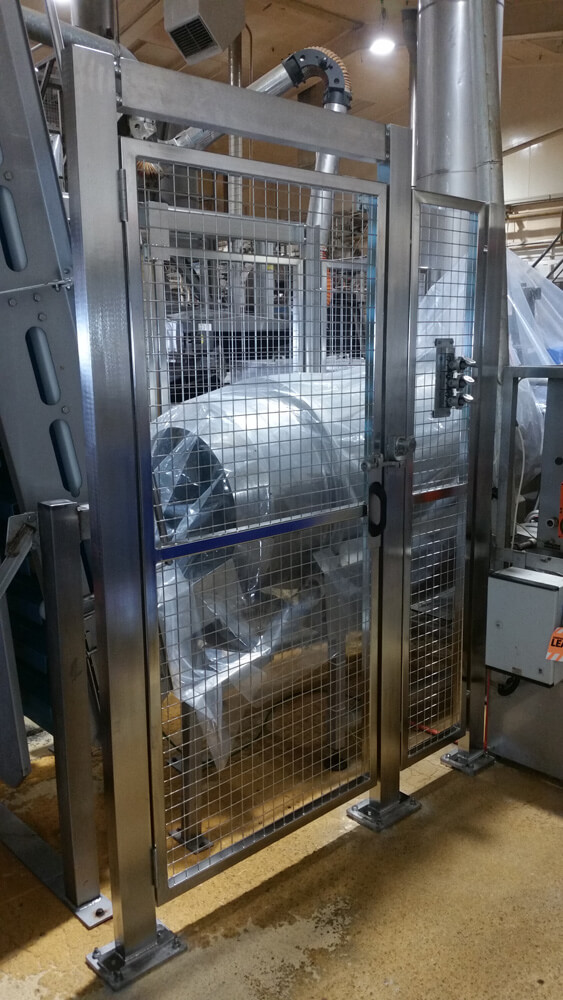

Custom guarding

Custom designed guarding

We can custom design and manufacture machine guarding for a unique solution or to complement the Axelent X-Guard modular system

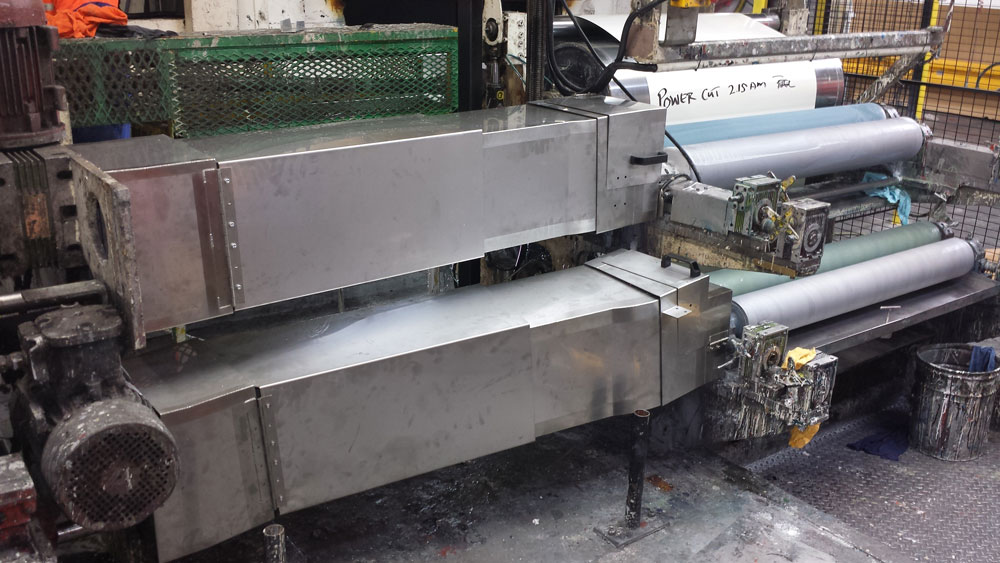

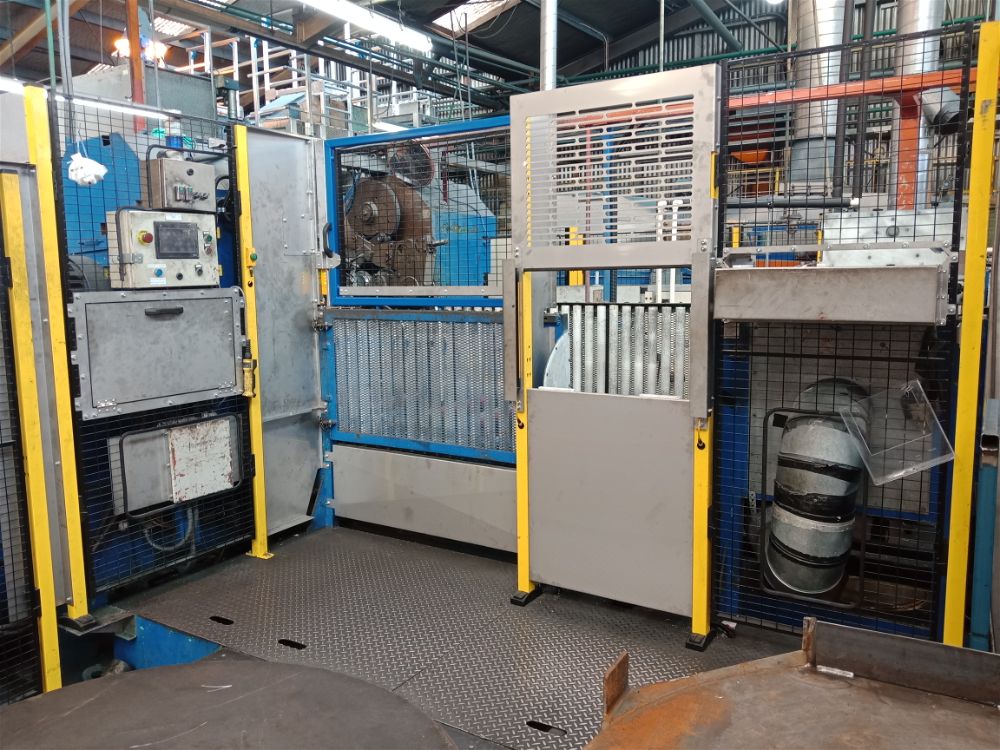

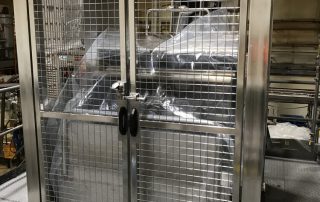

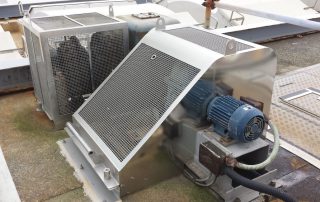

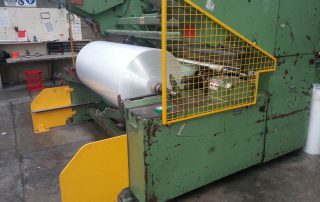

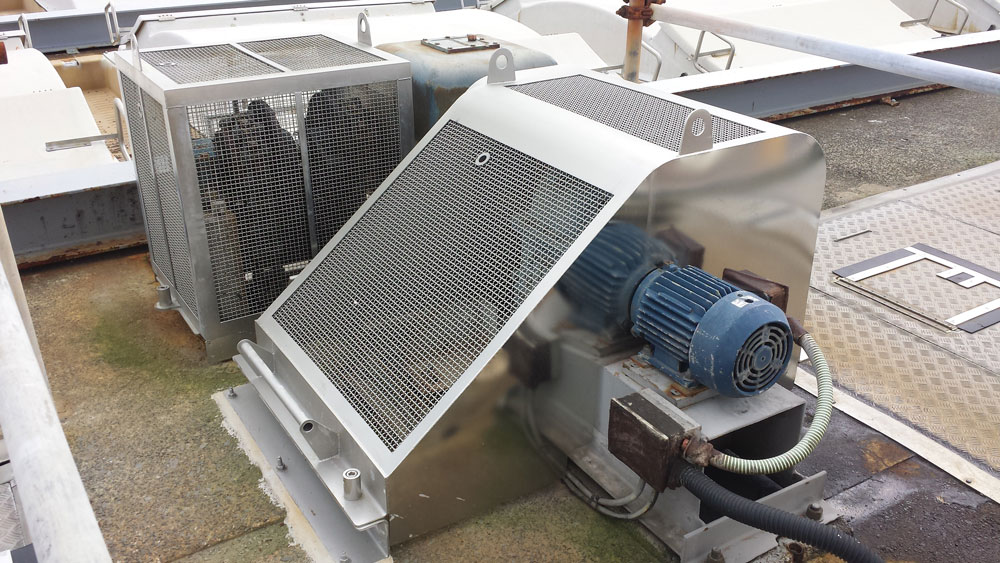

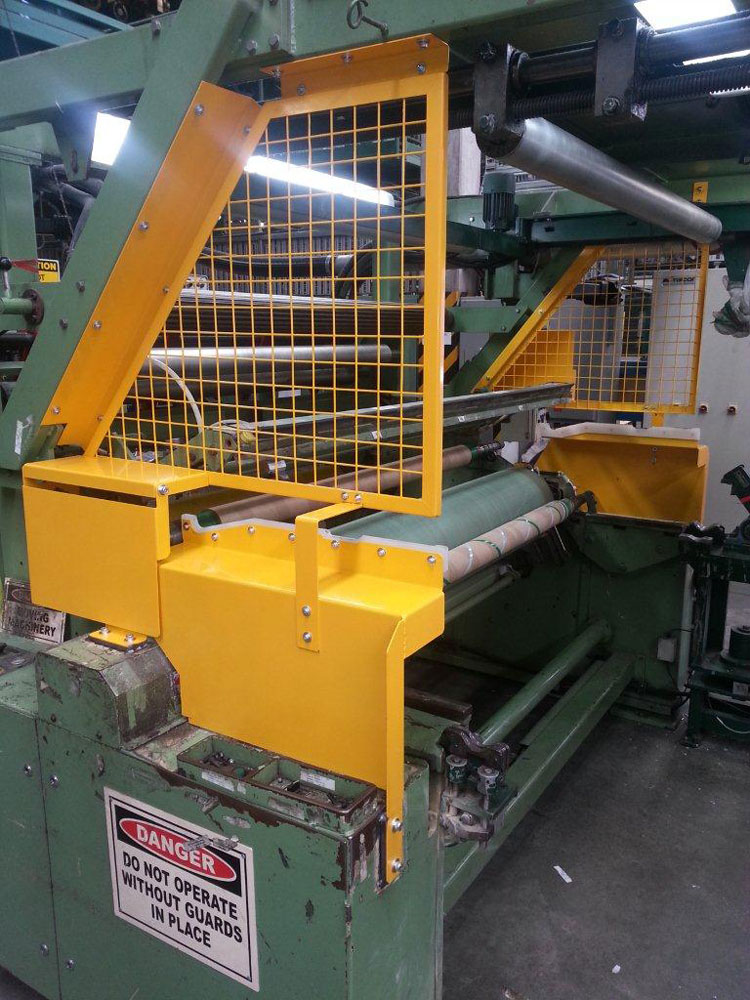

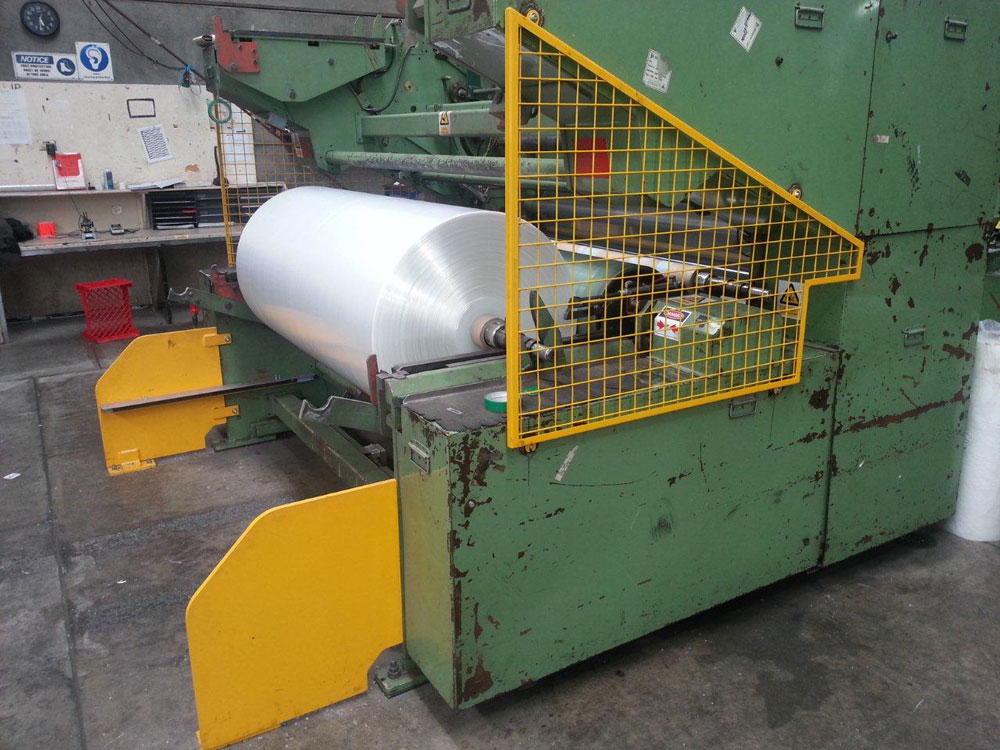

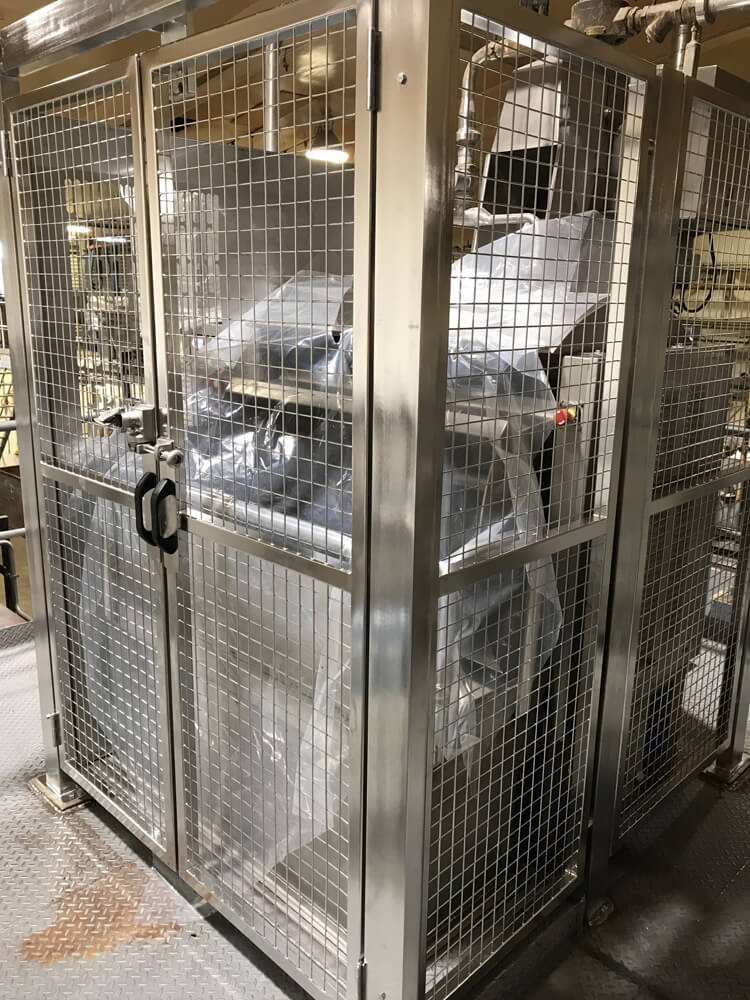

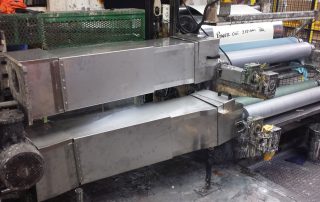

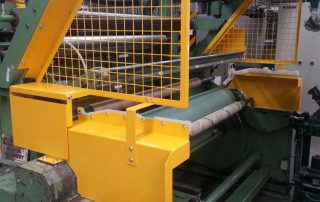

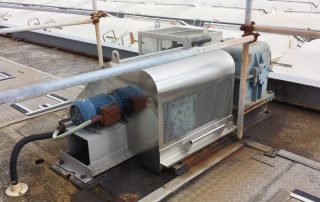

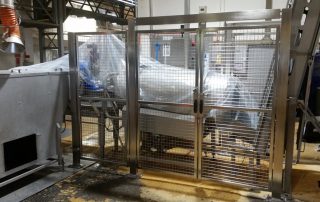

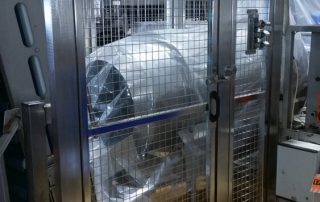

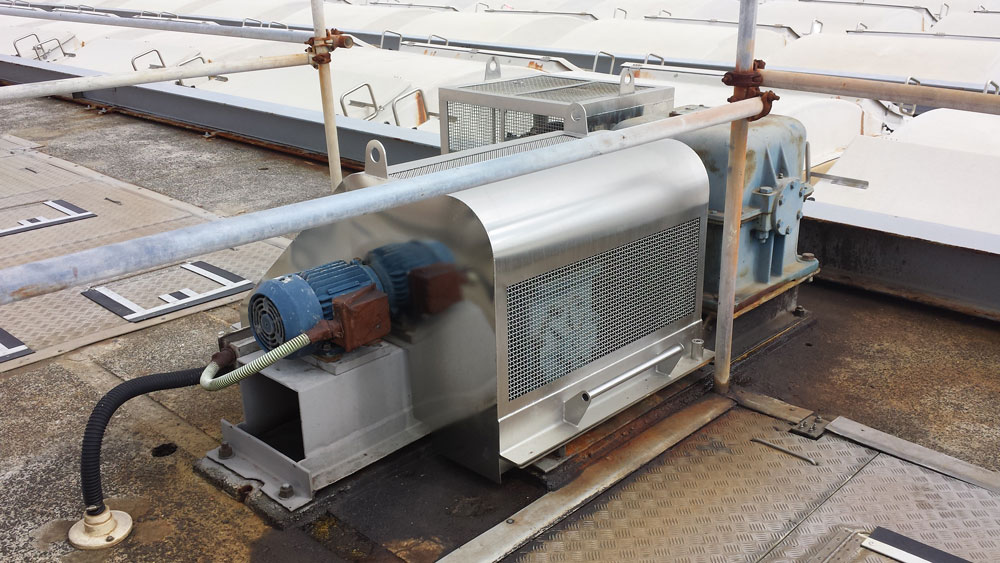

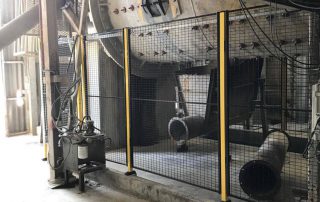

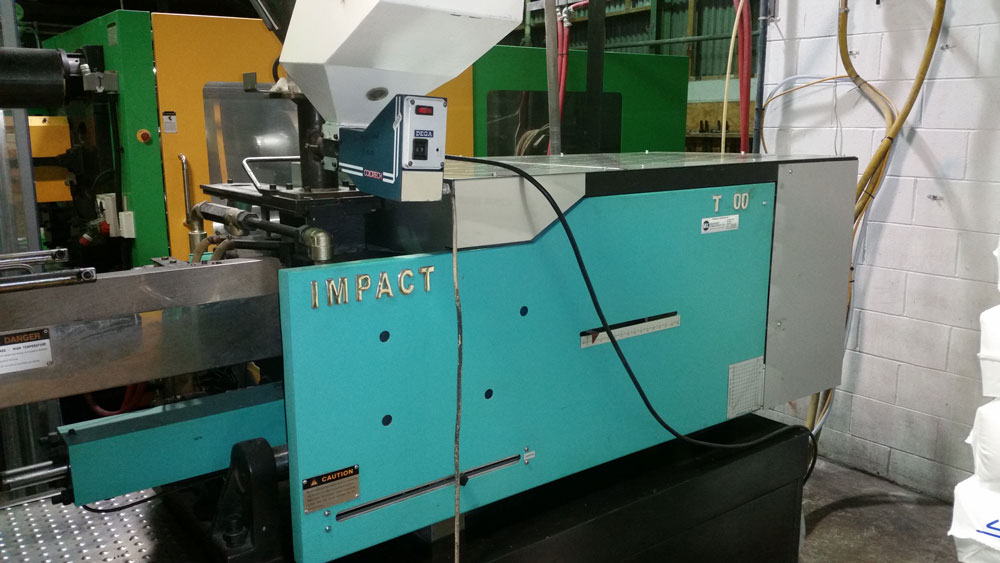

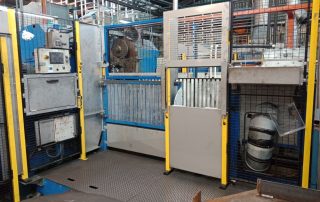

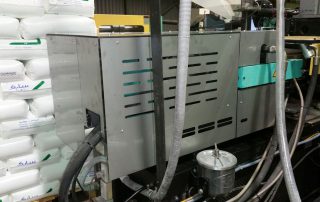

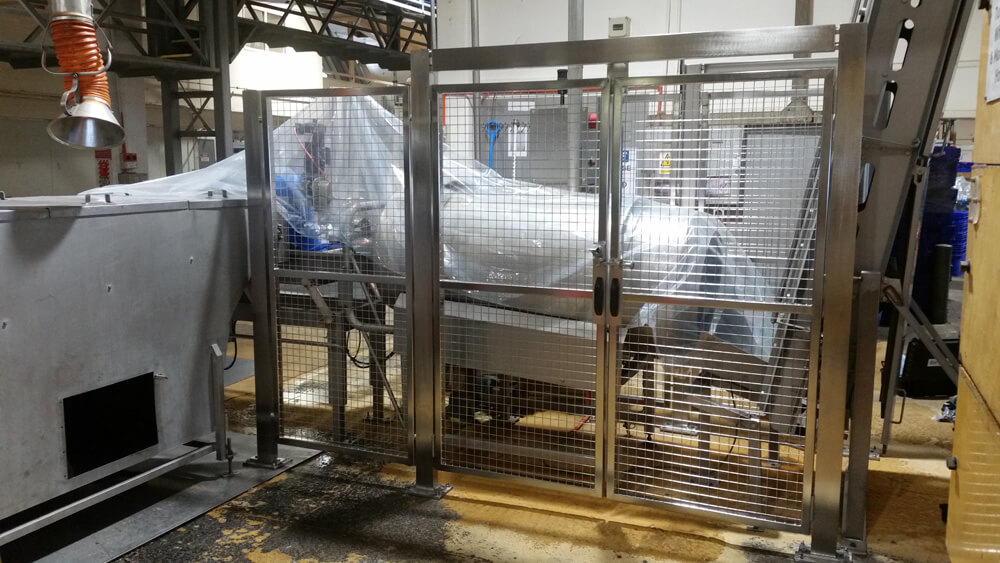

Custom Safety Guarding Solution

To view more images of custom guarding click any of the images below:

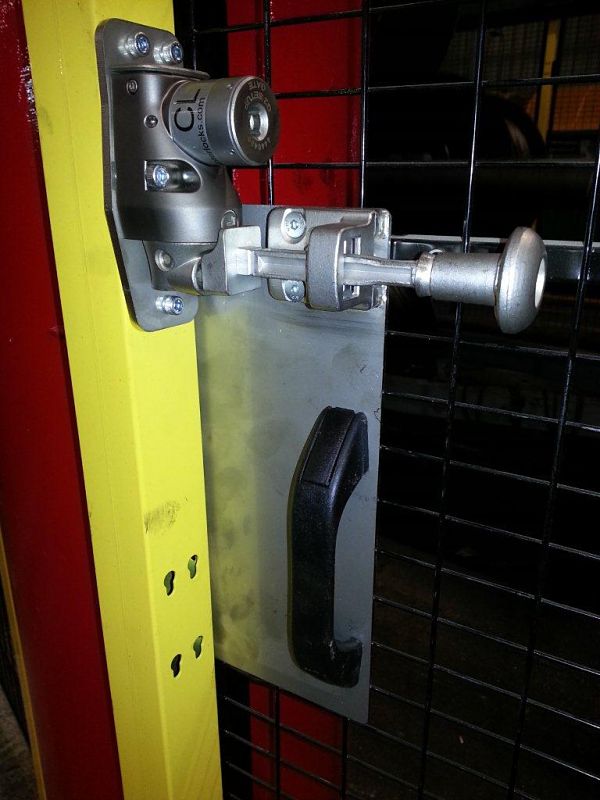

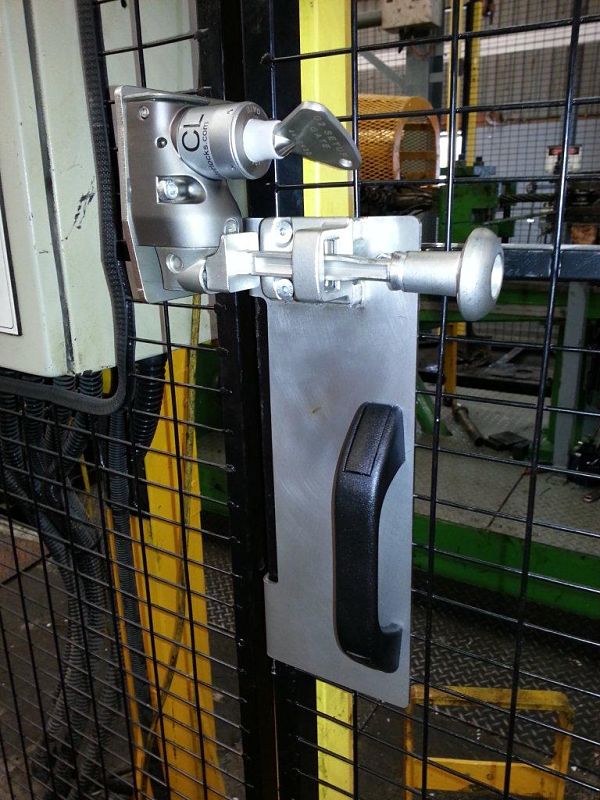

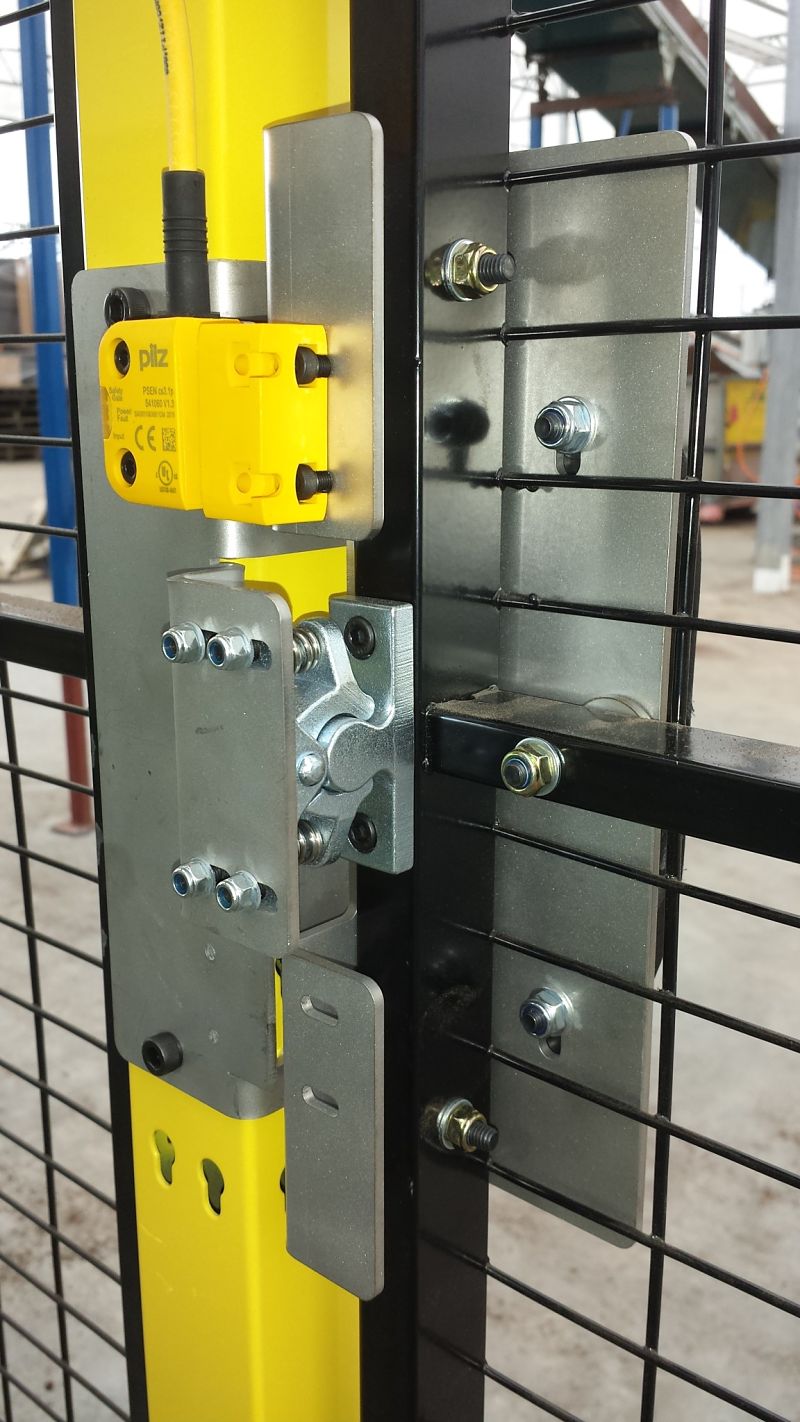

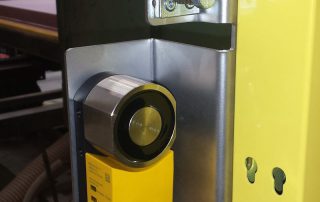

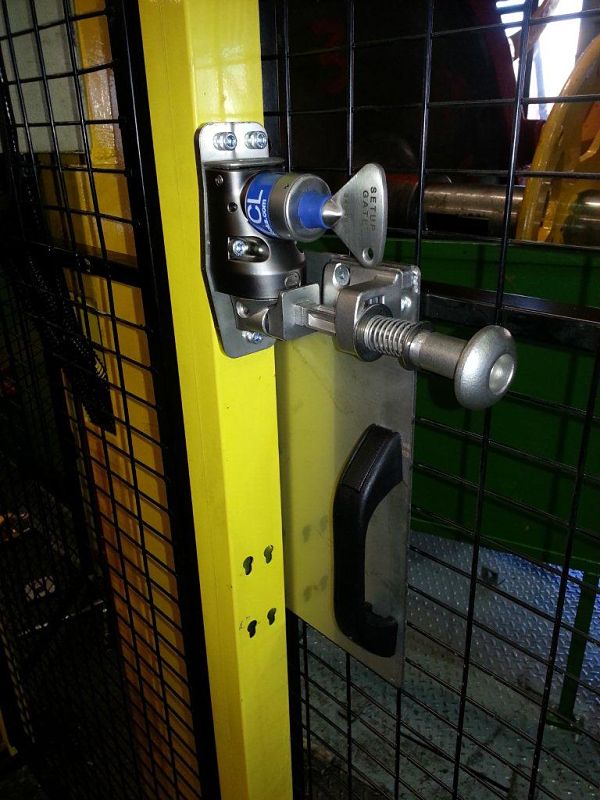

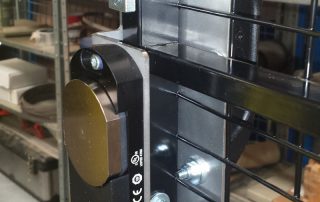

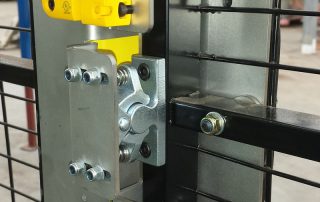

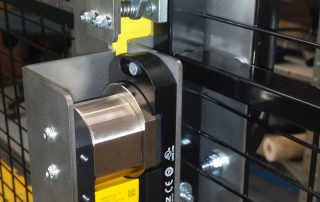

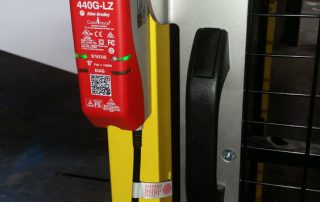

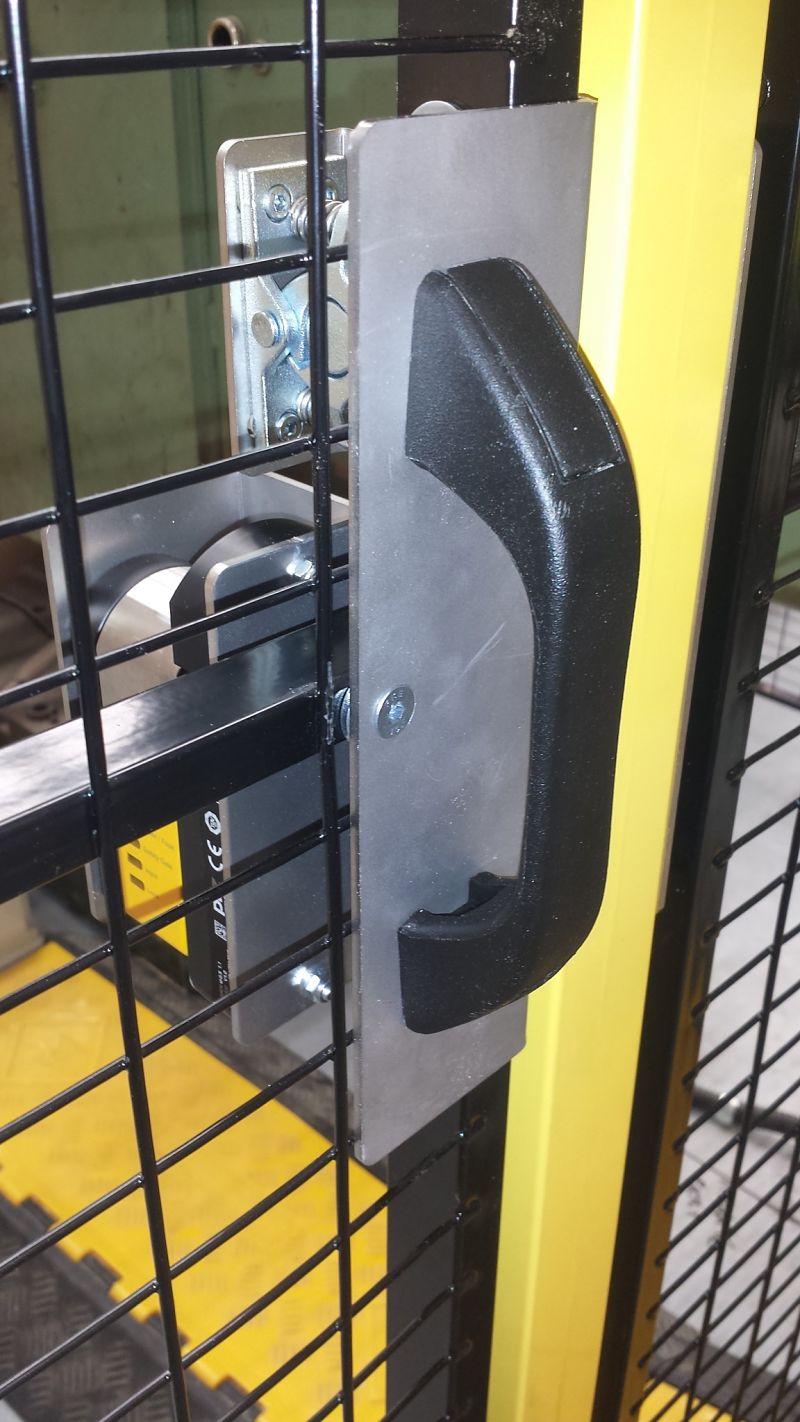

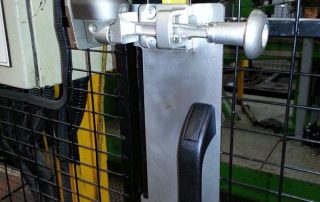

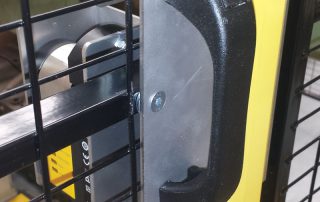

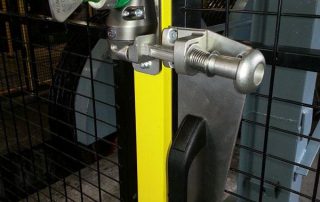

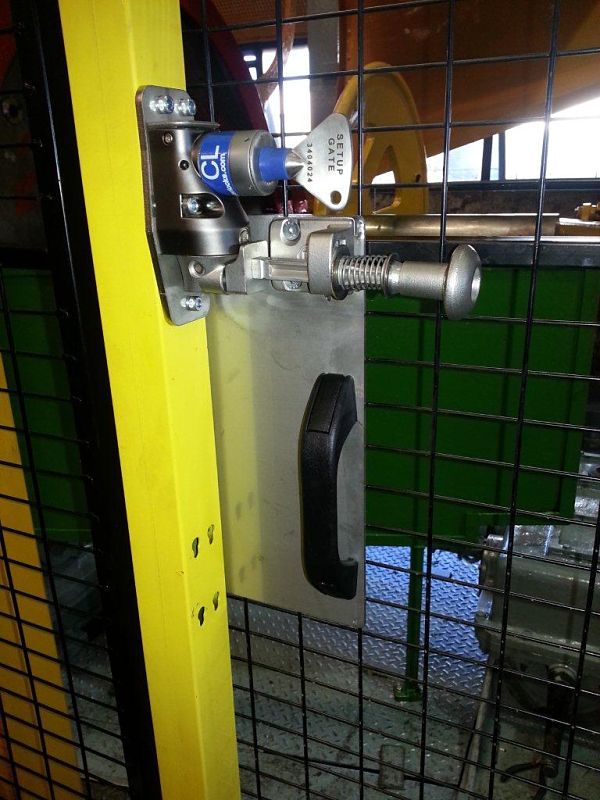

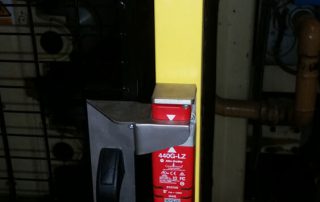

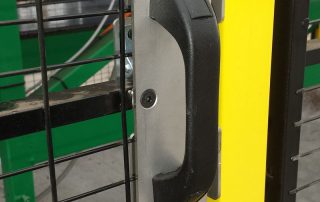

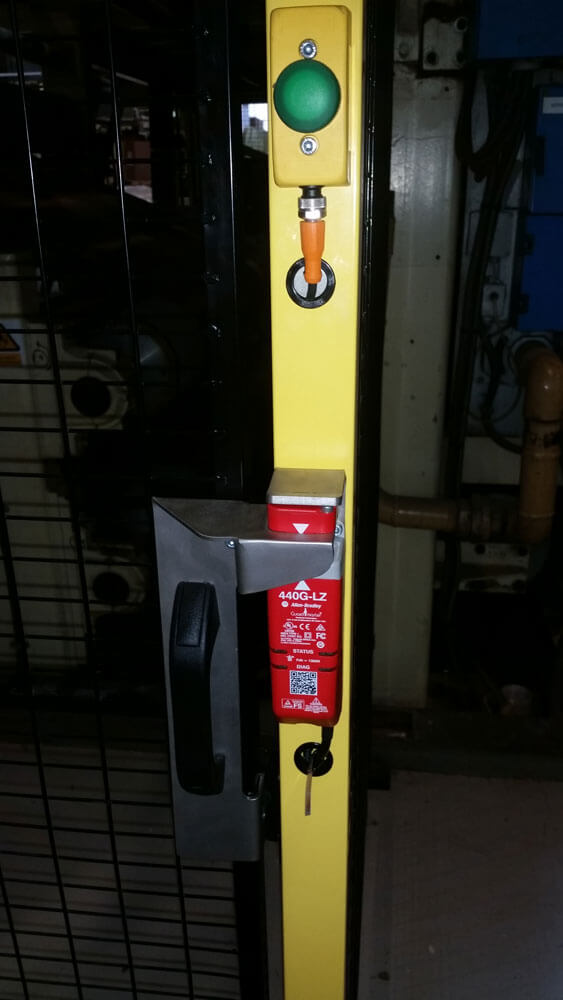

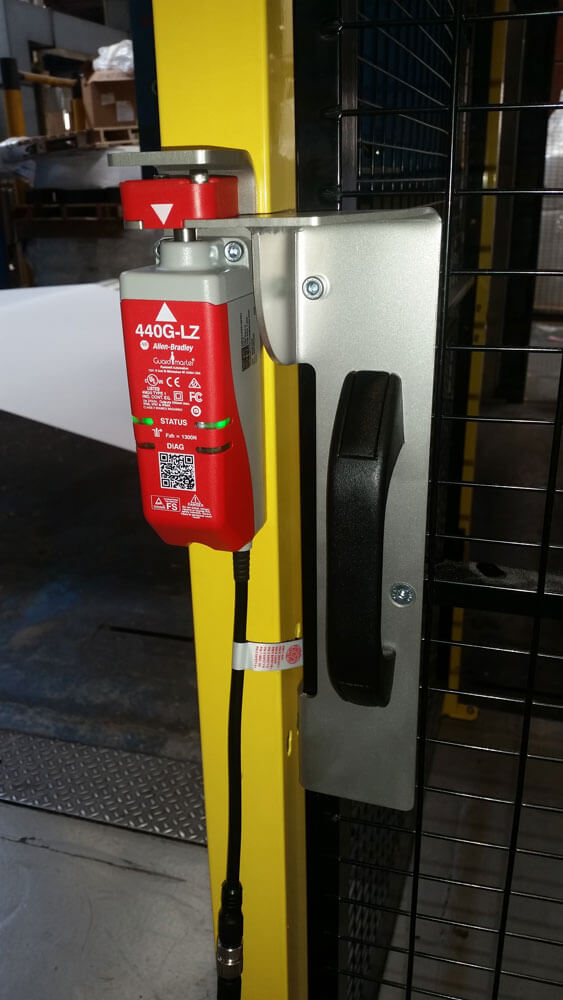

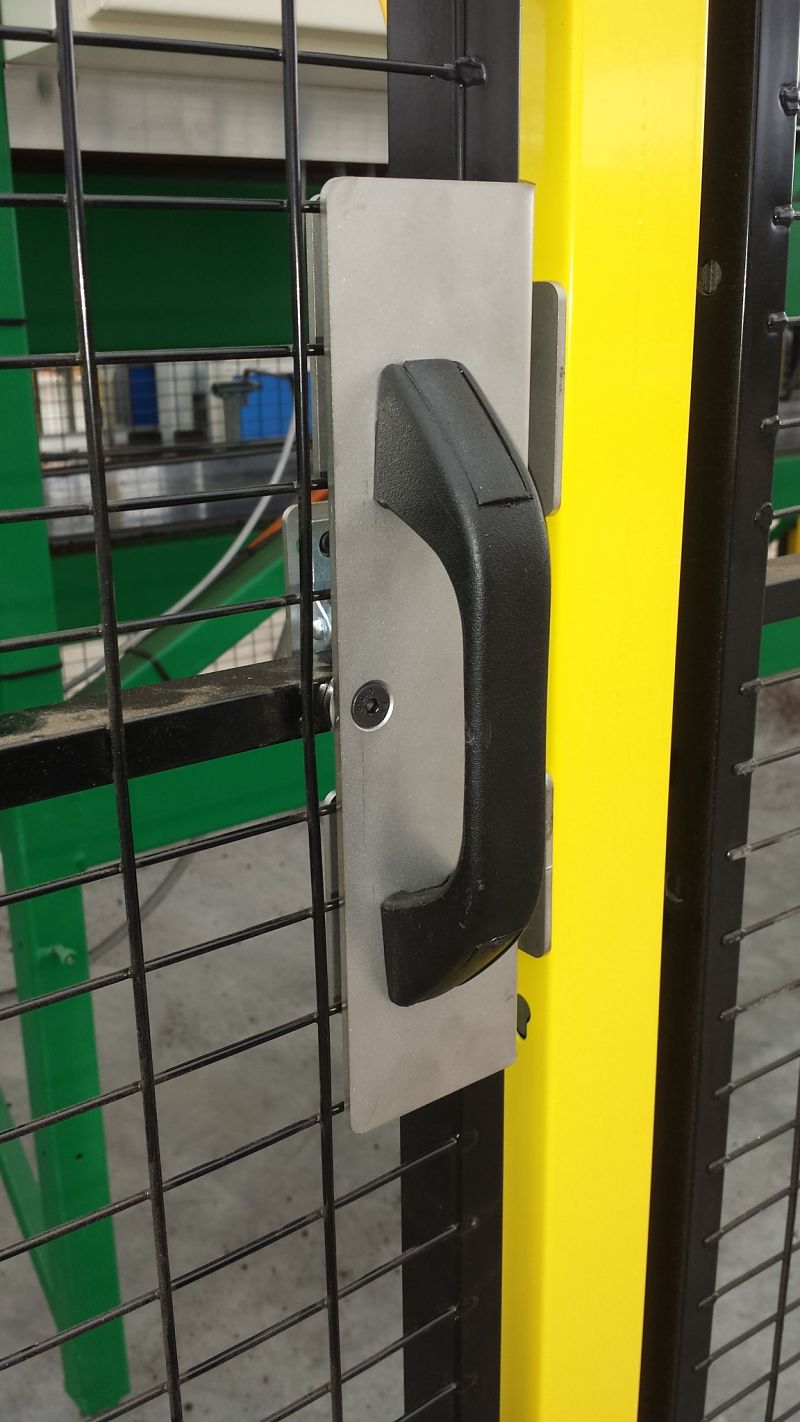

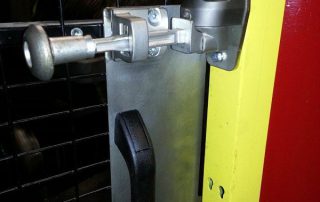

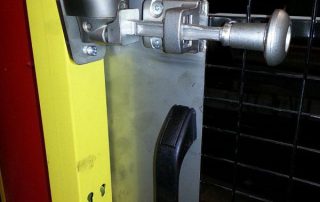

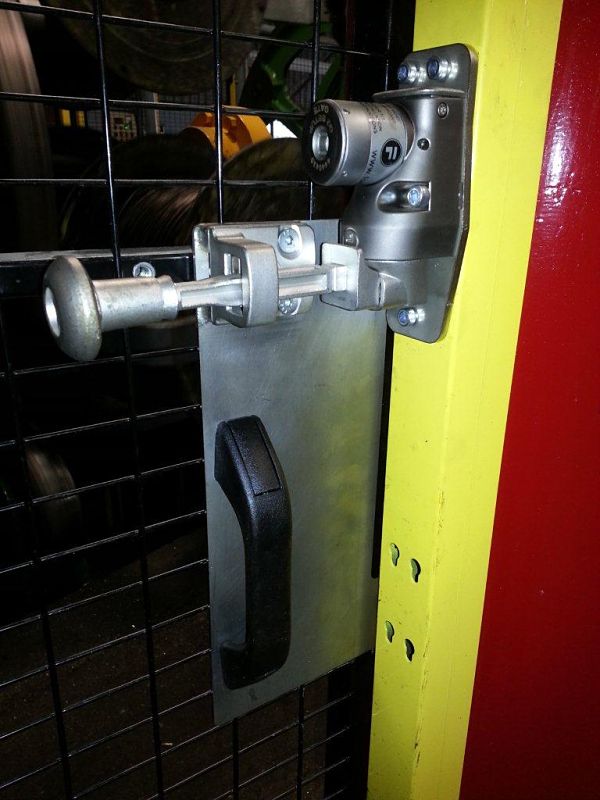

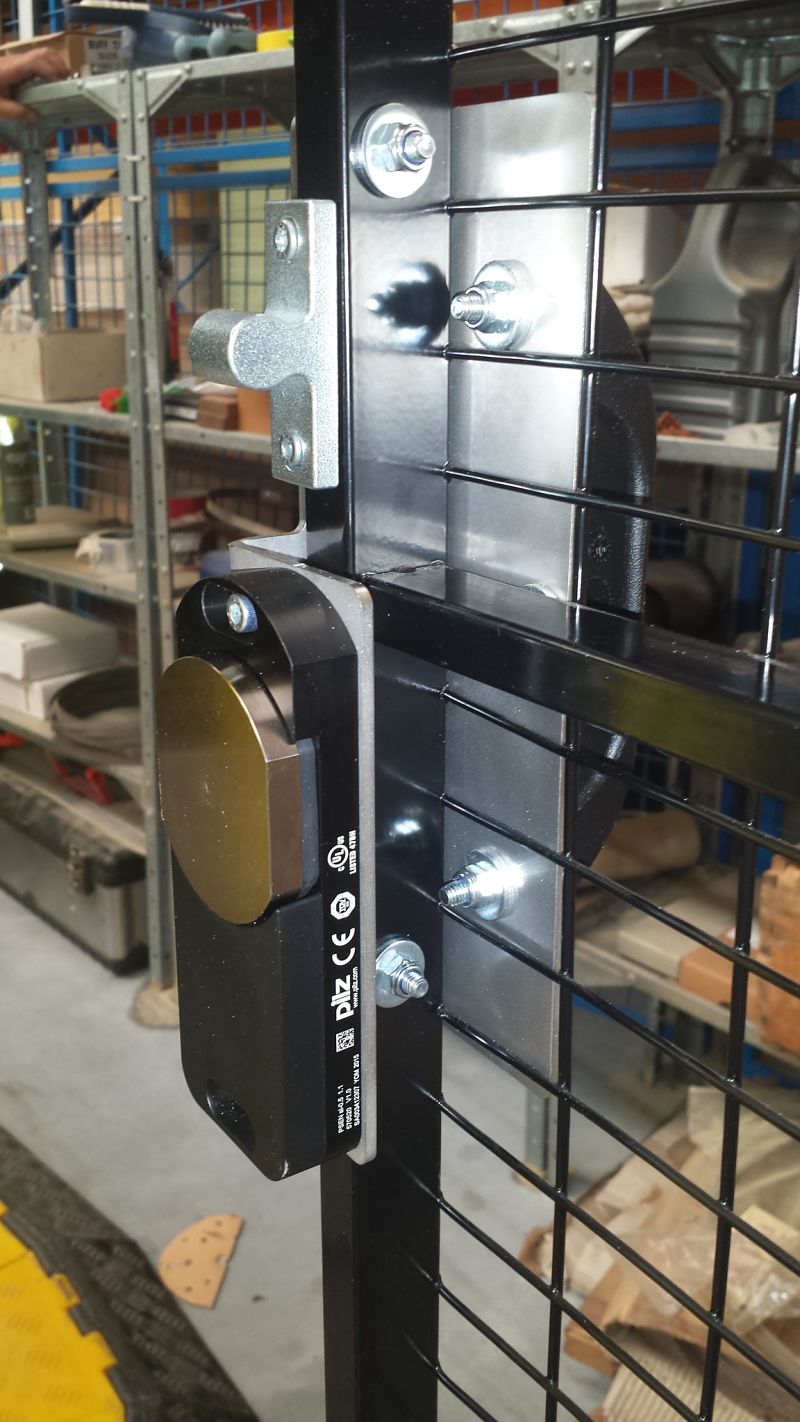

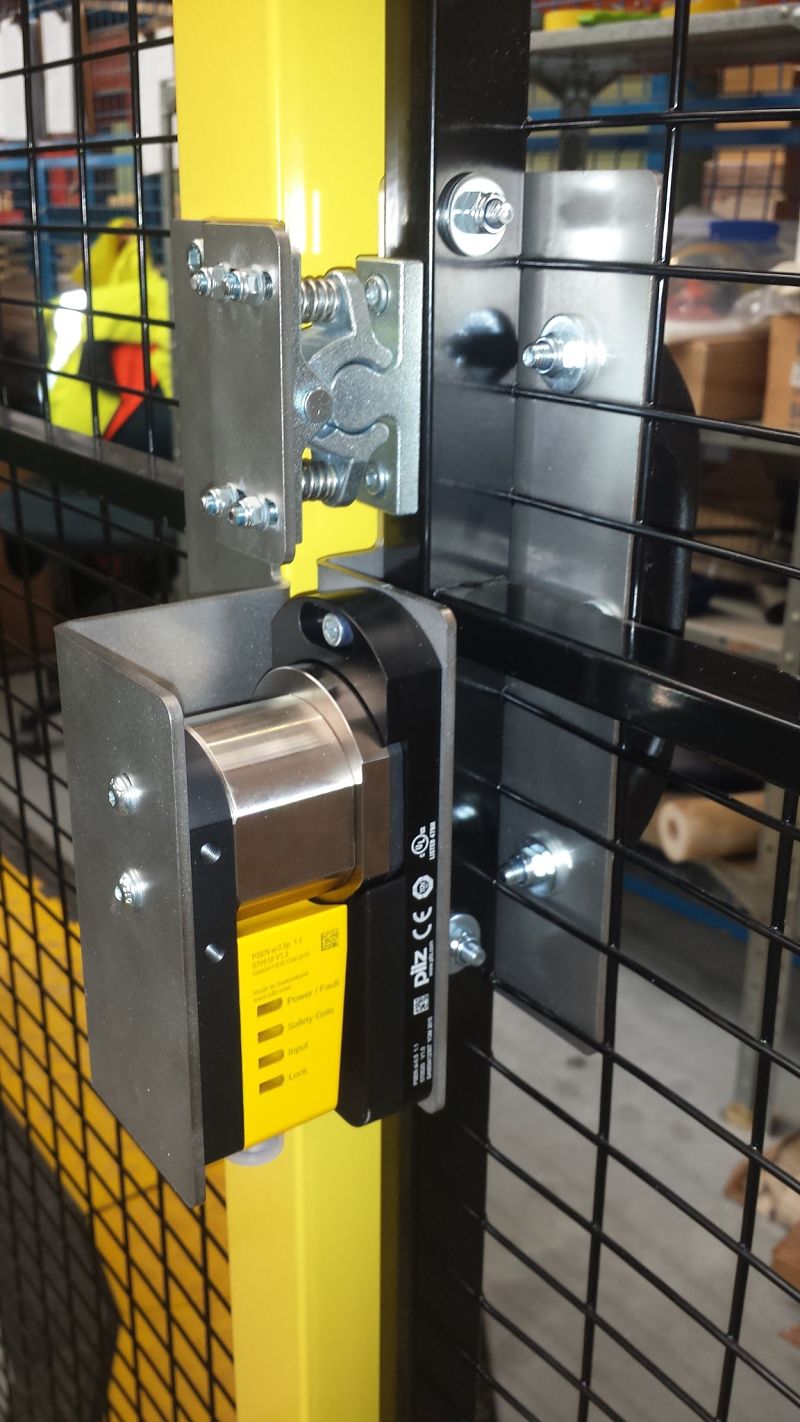

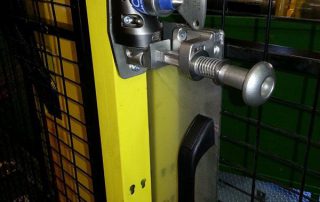

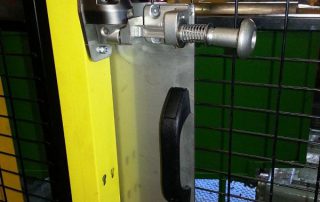

Door Interlock Options

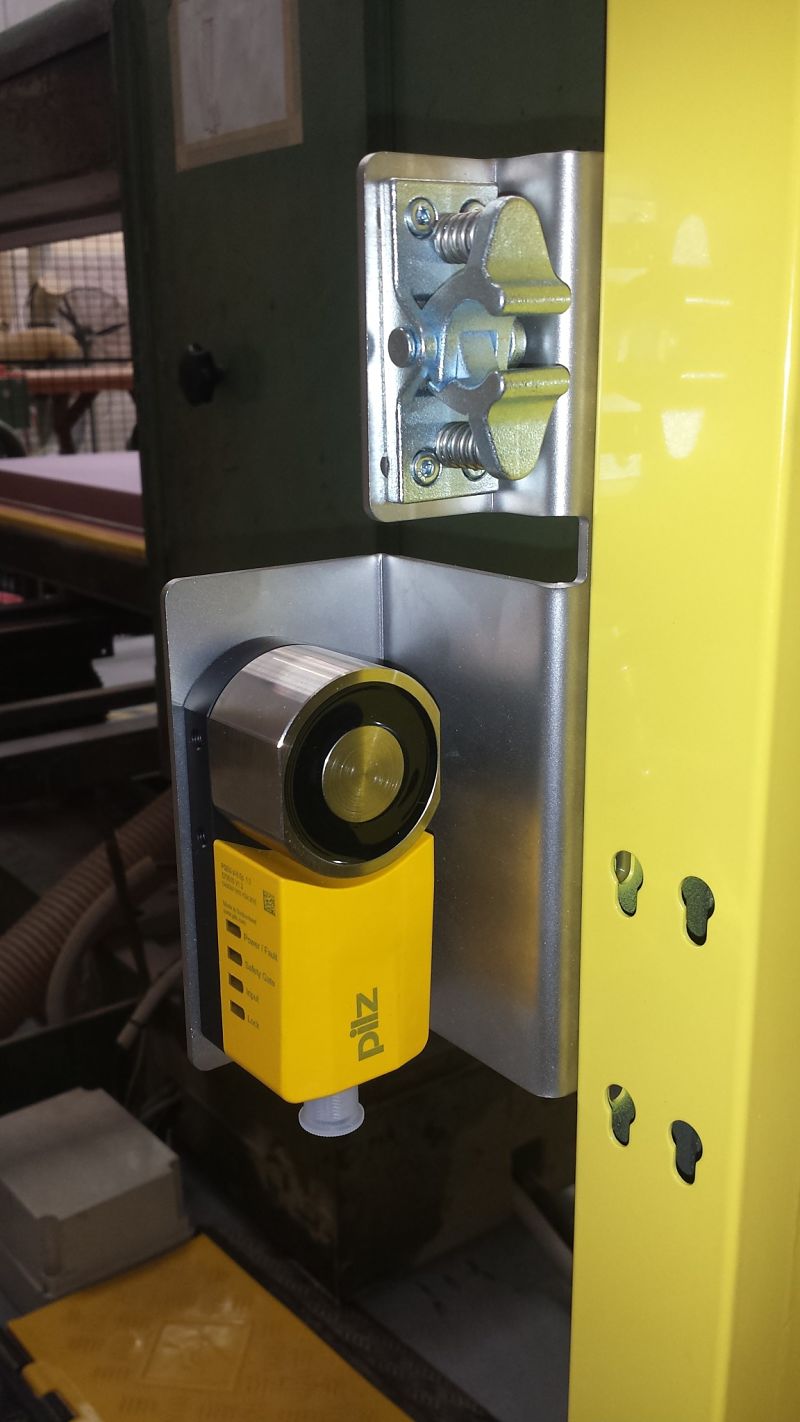

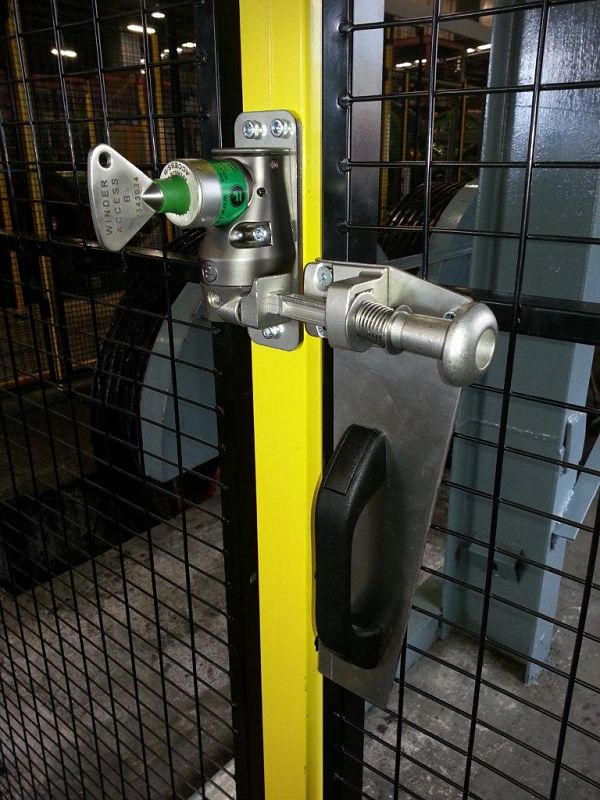

Concentric Engineered Solutions design, manufacture and install a range of door interlock mounting plates. These include the Fortress Interlocks range of mechanical trapped key interlocks as well as interlocks by other manufacturers such as Pilz and IDEM.

We can design a mounting plate or latch panel to suit your specific door interlock.

To view more images of door interlock options click any of the images below:
