Project Description

Vision System

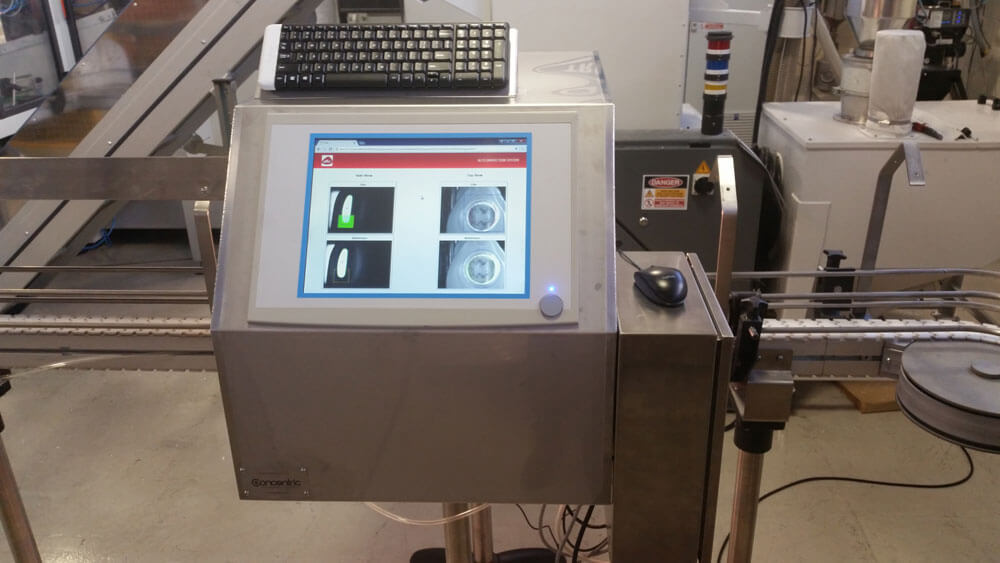

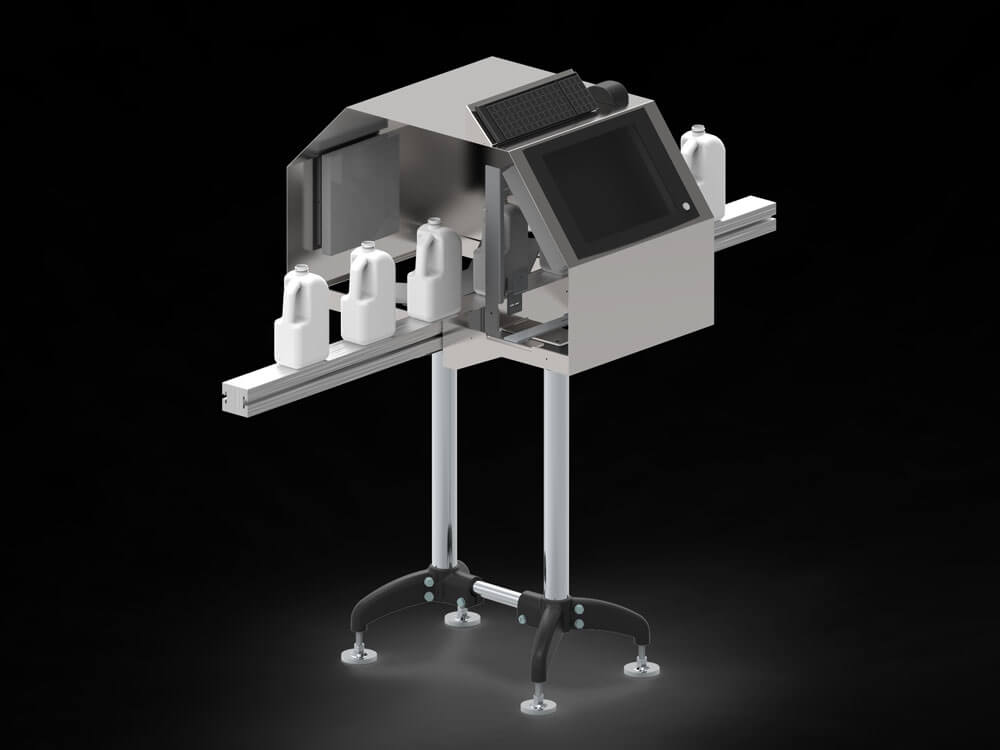

This vision system uses Sick cameras to inspect the handle and neck of milk bottles to ensure product quality.  The cameras use a custom designed webpage to compare a sample image against the current image within a user defined area to determine if the bottle conforms to the quality standard.  Any bottles that do not meet the criteria are ejected from the conveyor with an air blast.  In the example shown in the photos the customer wanted a keyboard available in addition to the touch screen panel PC.
